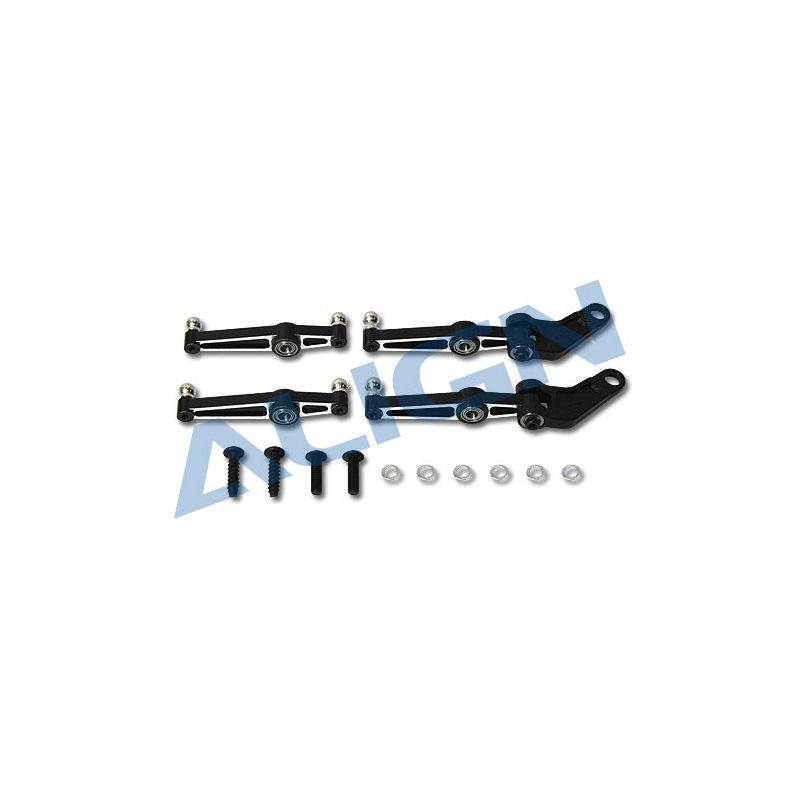

Trex 500 Metal Control Lever

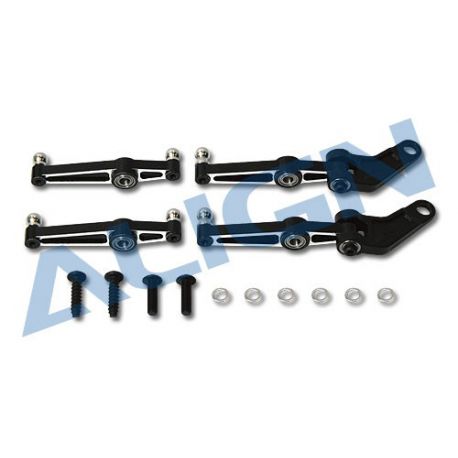

Align Trex 500 Metal Control Lever H50013T-1

Instruction:

• Use for Trex 500.

Specification:

• 500 Metal SF mixing lever x 2
• 500 Metal washout control arm x 2
• 500 Radius arm x 2
• 500 Collar x 4(3x4.5x1mm)
• Washout arm x 2
• Bearing MR63ZZ x 8(3x6x2.5mm)
• Bearing FMR52ZZ x 4(2x5x6x2.3mm)
• Washer x 6(3x4.8x0.3mm)
• Socket screw x 4(M2x5mm)
• Socket button head screw x 2(M3x10mm)
• Socket button head self tapping screw x 2(T3x12mm)
• Linkage ball B(M2x3) x 2(4.75x9.77mm)
• Linkage ball A(M2x3.5) x 4(4.75x8.18mm)
