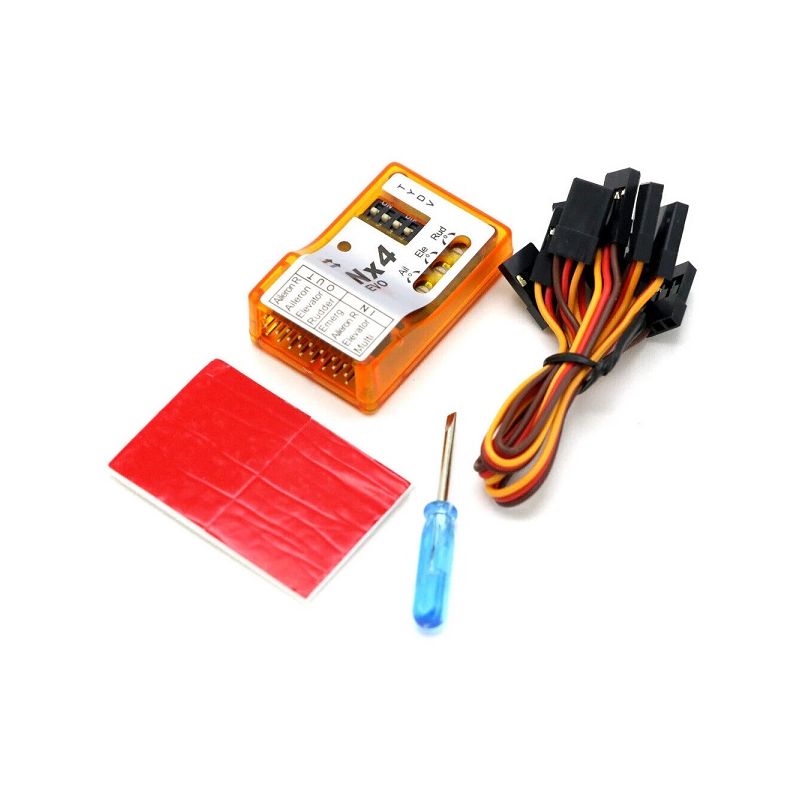

ZMR NX4 EVO Flight Controller With Emergency Mode

ZMR NX4 EVO Flight Controller With Emergency Mode For RC plane

• Provides 4 levels Of Flight Modes: Beginner, Practice, Intermediate & Expert.
• Performance: Horizontal Self-Stabilization, Manual flight, 3D Lock, One Key Sescue.
• 4 Model Types Support : Single Aileron , Dual Ailerons , Deita Wing And V-tail.

• 2 Kinds Of Gain Control Method supported:
• A. Master Gain From The Radio.
• B. Independent Axis-Gain From The Variable Resistor On The Controller Board.

• Emergency Mode Guarantee Safety Flight.
• Automatic Aileron Leveling.
• 3D AVCS Flight, Attitude Locking.
• Provide Y-wiring For Aileron.

Specs:

• Voltage Scope: DC 4.5 – 6V
• Response Frequency: 100Hz
• Operating Temperature: 0 - 50°C
• Dimension: 43 x 28 x 15mm
• Weight: 11g

click here for the manual
