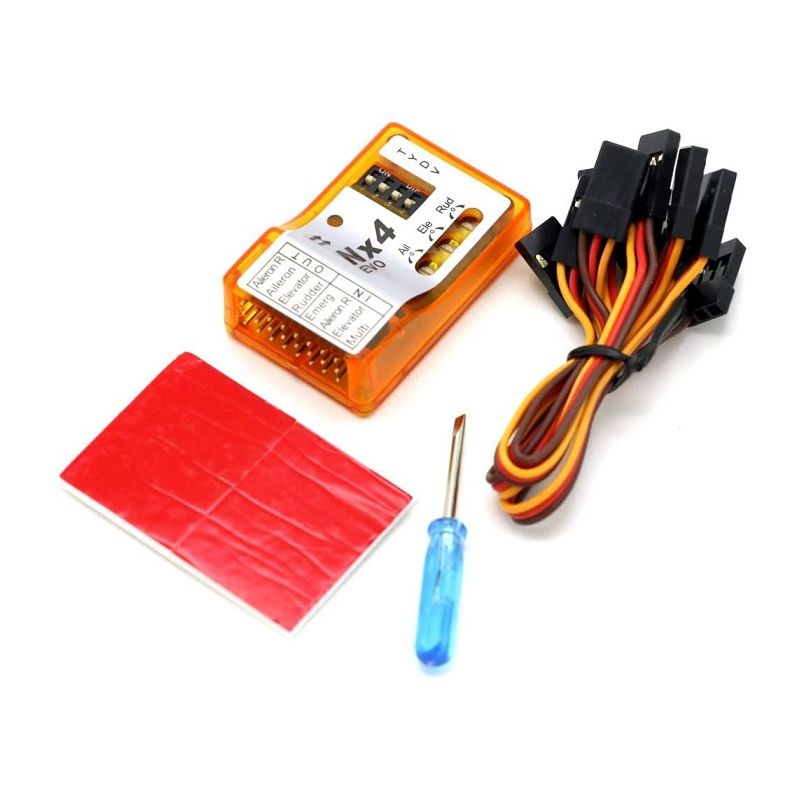

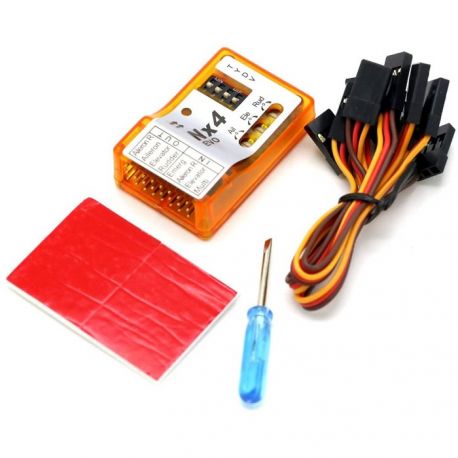

ZMR NX4 PRO Flight Controller 3D Gyroscope

ZMR NX4 PRO Flight Controller 3D Flight Gyroscope For Fixed-wing Aircraft

Click here for the Manual

NX4 PRO Flight Controller:

• Voltage scope: DC 5 – 6V
• Dimension: 40mmx25mm
• Weight: 6.5g

Features:

Four Model Types Support : singal aileron,dual ailerons,flapperons,deita and V-tail.

Three Flight Modes supported:

• a.Rate Mode,Rate Mode for offset correction.
• b.Hold Mode,HOLD mode for attitude hold.
• c.Gyro-Off Mode,transsmiter control the plane directly.

Two kinds of Gain Control Method supported:Control Gain from the radio,Independent Axis-Gain from the Variable resistor on the Controller board.

Using superior algorithm,Bring a more comfortable and more sensitive sense of control.
