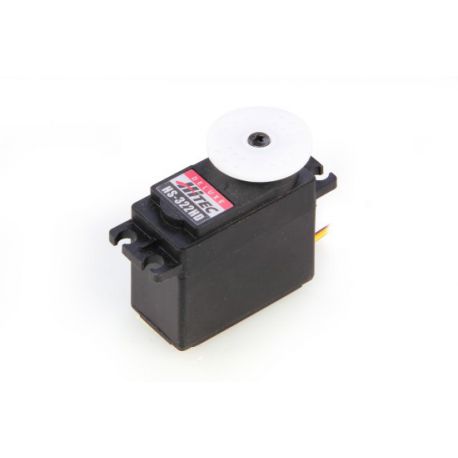

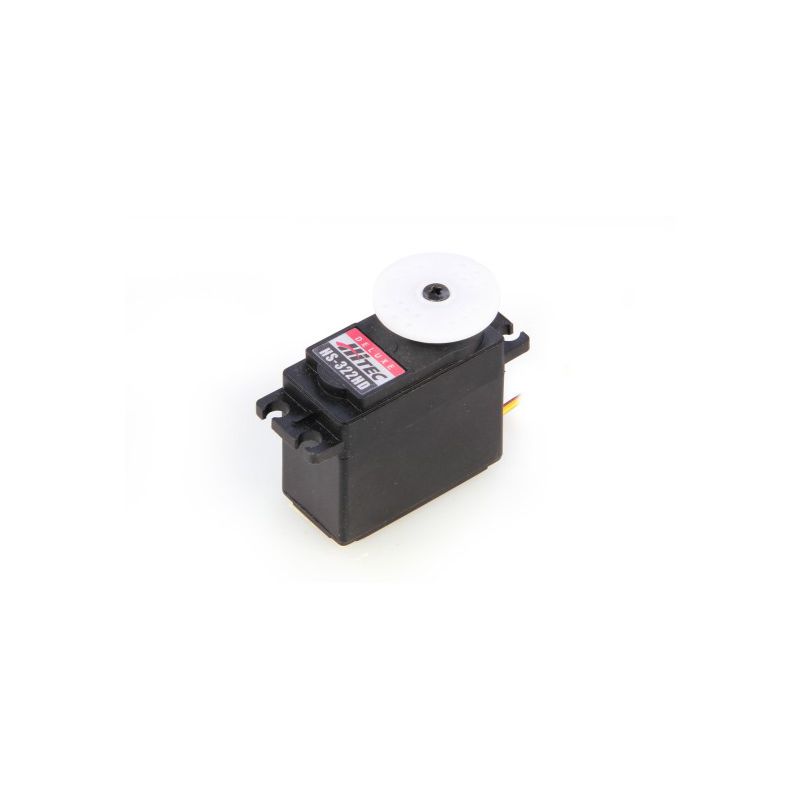

HITEC HS322HD Standard HD Gears 0.15s/3.7KG

2213210 HS322HD HI TEC STANDARD SERVO WITH HD GEARS LONG LIFE POT

Specifications

• Motor Type:    3 Pole
• Bearing Type:    Nylon
• Speed (4.8V/6.0V):    0.19 / 0.15 sec @ 60 deg.
• Torque oz./in. (4.8V/6.0V):    42 / 51
• Torque kg./cm. (4.8V/6.0V):    3.0 / 3.7
• Size in Inches:    1.57 x 0.78 x 1.43
• Size in Millimeters:    39.88 x 19.81 x 36.32
• Weight ounces:    1.51
• Weight grams:    42.81
• Gears - Karbonite

 The HS-322HD Standard Heavy Duty Servo utilizes Hitecs revolutionary Karbonite gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they dont show any signs of wear. Karbonite gears and our custom IC make the HS-322HD a great choice for an economical sport servo.

*See Karbonite guidelines below

Features

Applications: Heli's and Aircraft up to 72 or up to 12lbs when using just one servo per control surface.

Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications, even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
