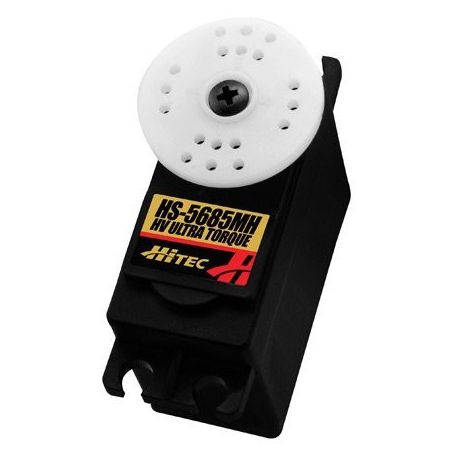

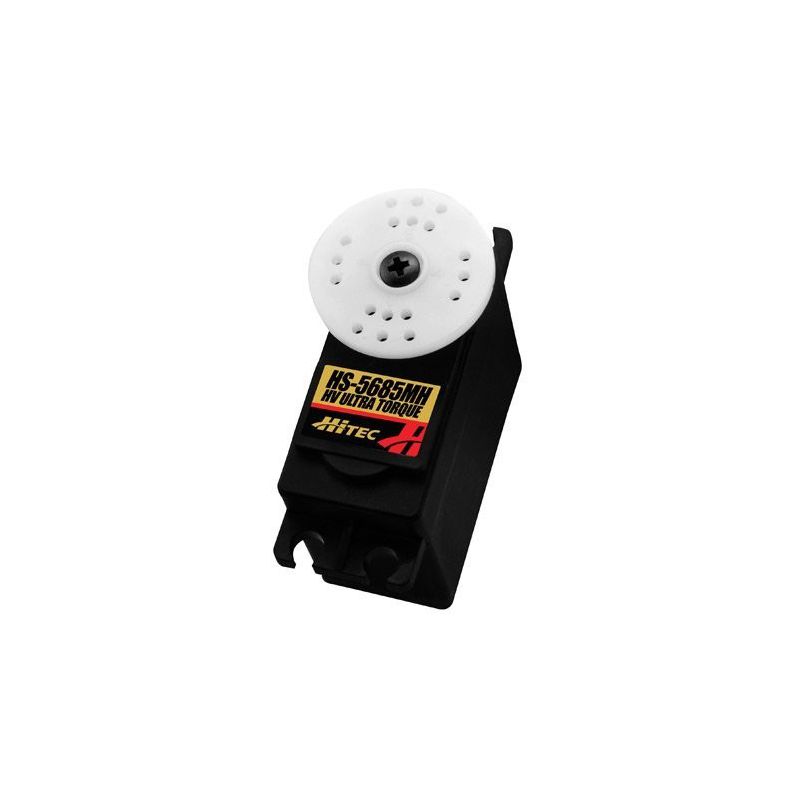

HITEC HS5685MH Standard HV MG 0.17s/12.9KG

2217640 HS5685MH HV DIGITAL HIGH TORQUE PROGRAMMABLE SERVO

• Motor Type - 3 Pole Ferrite
• Bearing Type - Dual Ball Bearing
• Speed (6.0V/7.4V) - 020 / 0.17 sec @ 60 deg.
• Torque kg./cm. (6.0V/7.4V) - 11.3 / 12.9
• Size in Millimetres - 40.6 x 19.8 x 37.8
• Weight grams - 60.00
• Gears - Metal
• Comes with one alloy servo arm

 The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and our exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.

Our affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.

Features

• Programmable Digital Circuit
• Heavy-Duty Metal Gear Train (MK first gear)
• 7.4V Optimized Motor
• Dual Ball Bearing Supported Output Shaft

Programmable Features Include

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point

Specifications

• Motor Type:     3 Pole Ferrite
• Bearing Type:     Dual Ball Bearing
• Speed (6.0V/7.4V):     0.20 / 0.17 Second @ 60°
• Torque oz./in. (6.0V/7.4V):     157 / 179
• Torque kg./cm. (6.0V/7.4V):     11.3 / 12.9
• Size in Inches:     1.6 x 0.8 x 1.5 in
• Size in Millimeters:     40.6 x 19.8 x 37.8 mm
• Weight oz.:     2.1
• Weight g.:     60g
