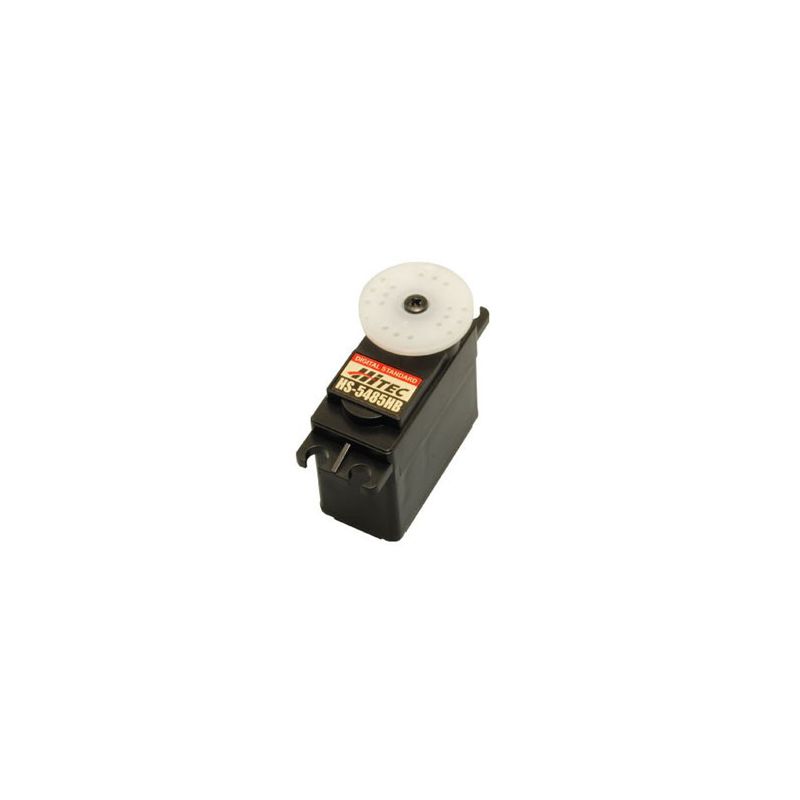

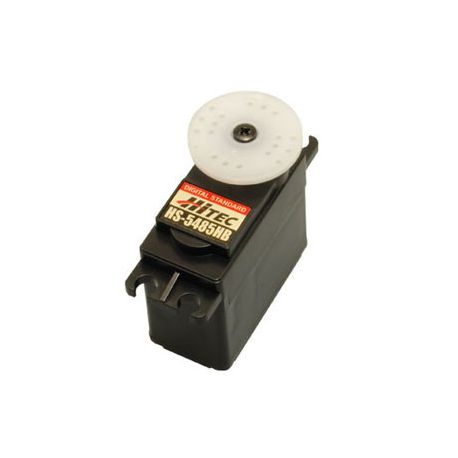

HS5485HB HITEC Digi Standard 0.17s/6.4KG

2217580 HS5485HB DIGITAL HI TORQUE SERVO HD GEARS DUAL BB

Specifications

• Motor Type:     3 Pole
• Bearing Type:     Top Ball Bearing
• Speed (4.8V/6.0V):     0.20 / 0.17
• Torque oz./in. (4.8V/6.0V):     72 / 89
• Torque kg./cm. (4.8V/6.0V):     5.2 / 6.4
• Size in Inches:     1.57 x 0.78 x 1.49
• Size in Millimeters:     39.88 x 19.81 x 37.85
• Weight ounces:     1.59
• Weight grams:     45.08

The HS-5485HB is Hitec’s lowest price digital servo and is an excellent choice for sport airplanes up to .60 size. Featuring a programmable digital circuit and our Karbonite™ gear technology that offers four times the strength as our standard nylon gears and after hundreds of thousands of cycles won’t show any signs of wear.

*See Karbonite guidelines below

Features

Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.

Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
