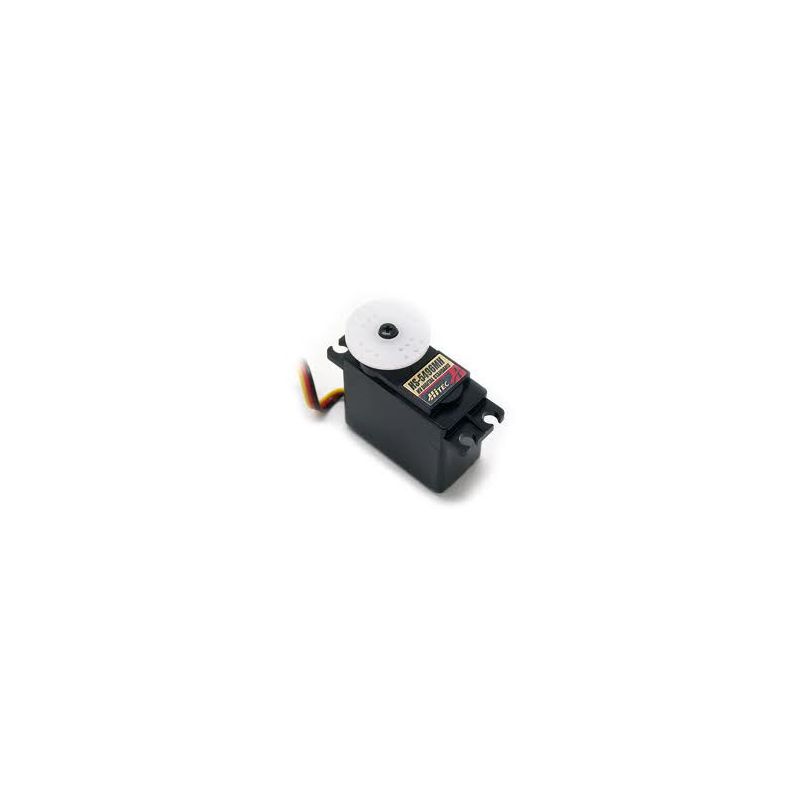

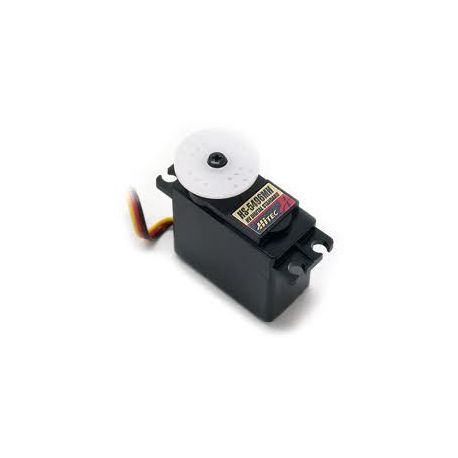

HITEC HS5496MH Standard HV MG 0.15/7.2KG

2217600 HS5496MH DIGITAL HV HIGH TORQUE METAL GEARS

• 6.0v to 7.4v
• Motor Type - 3 Pole Ferrite
• Bearing Type - Top Ball Bearing
• Speed (6.0V/7.4V) - 017 / 0.15 sec @ 60 deg.
• Torque kg./cm. (6.0V/7.4V) - 6.0 / 7.2
• Size in Millimetres - 40 x 20 x 38
• Weight grams - 52
• Gears - Metal

Digital Performance at an Analog Price

At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5496MH metal gear digital sport servo. Based on the popular HS-5485HB, the HS-5496MH is the perfect match for match for sport airplanes up to 25% scale as well as sport cars and trucks. With 7.4 volt, 2-cell LiPo battery capability, The HS-5496MH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.

Programmable Features Include:

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point

Specifications

• Motor Type:     3 Pole Ferrite
• Bearing Type:     Top Ball Bearing
• Speed (6.0V/7.4V):     0.17 / 0.15 Second
• Torque oz./in. (6.0V/7.4V):     83 / 100 oz./in.
• Torque kg./cm. (6.0V/7.4V):     6.0 / 7.2 kg./cm.
• Size in Inches:     1.57 x 0.78 x 1.50 in.
• Size in Millimeters:     40 x 20 x 38 mm
• Weight oz.:     1.59 oz.
• Weight g.:     52 g.
