Flysight Black Pearl 7" FPV LCD Monitor Used

BP-LCD-U

Used

in-stock

Warning: LOW STOCK !

€ 80.00

Add to wishlist

More info

Flysight Black Pearl 7" FPV LCD HD Monitor with Built in Diversity Receiver 40 Channel 5.8GHz BP-LCD-U

If you are looking for an ideal monitor for First Person View or aerial photography, then the Flysight Black Pearl 7" LCD monitor is for you, it has been designed especially for FPV / First person View and outdoor users. The screen has twin 5.8 Ghz receivers built in which offer “diversity”, which means that the receiver with the stronger signal will be active, if the screen needs to switch back over to the other receiver you will not see any drop in picture, the only way of knowing that the screen has jumped from one receiver to the other is by the small blue LED in the top of the screen indicating which receiver is in use. The monitor will not be effected by the 2.4 Ghz RC radio controller as the systems operate on different frequencies.

The Flysight Black Pearl monitor has a very bright & clear image (adjustable brightness) and uses its own built in battery to power the screen when you are at the flight field. The monitor is supplied with a wall charger to charge the internal battery, without the need to remove the battery from the back of the screen.

 One of the most important features for a monitor used for FPV / First Person View use is that there is no "blue screen", if the signal becomes weak or interrupted for short periods of time, the Flysight screen will not go to a blue screen, this give warning that you are running out of the range of the video link when the limits of your FPV setup are tested. This feature means that you are able to fly much further and never lose the image to the blue screen.

The Flysight Monitor supports the following video formats:
NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.


The default display mode is PAL, if you use a NTSC camera or other format, please select the correct setting from the menu.

Features:

  • Built-in 5.8G wireless receiver x 2, 40 channel selection, effectively avoids signal interference
  • Ultra Bright 300cd/m*m High-Definition Display
  • Supports Composite Video RCA Input / HDMI Type A
  • Display Resolution up to 1024 x 600 Pixels
  • 16:9 or 4:3 Adjustable Display Ratio
  • Designed for FPV Application
  • Connect with the camera, as a monitor or secondary monitor of aerial
  • 1/4-20" Thread hole is included in the bottom, easily to mount on the tripod
  • High brightness, contrast ratio monitor with solid sun shade, to see clearly in bright sunshine


Specification:

  • Panel Size: 7-inch
  • LCD Type: TFT LCD
  • Display Resolution up to 1024 x 600 Pixels
  • Backlight: LED
  • Horizontal frequency range: 30~60KHz
  • Field frequency range: 50~75Hz
  • Dot pitch: 0.0642 (W) x 0.1790 (H) mm
  • Aspect Ratio: 16:9
  • Brightness: 300 cd/m*m
  • Contrast Ratio: 700:1
  • Response time: 15ms
  • Viewing Angle: 70/70,50/60 (L/R,U/D)
  • Input Voltage: DC 6-18V
  • Power Consumption: 7.8W Watts
  • Inputs: RCA Input, HDMI Type A
  • Speaker: Built in, 1 Watt
  • Mount: 1/4-20" Thread and VESA mounting socket (75mm)
  • Storage Temperature: -20C to 60C
  • Operating Temperature: -10C to 60C
  • Size: 184mm x 126mm x 19.5mm
  • Net weight: 350g

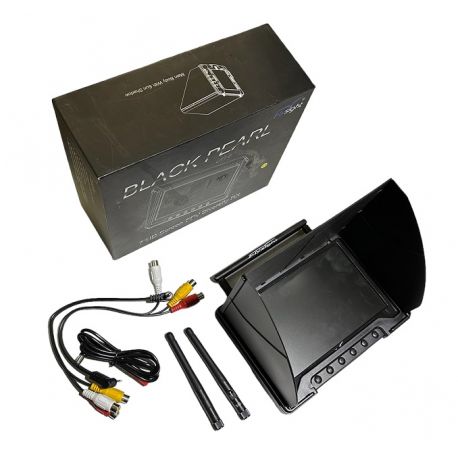

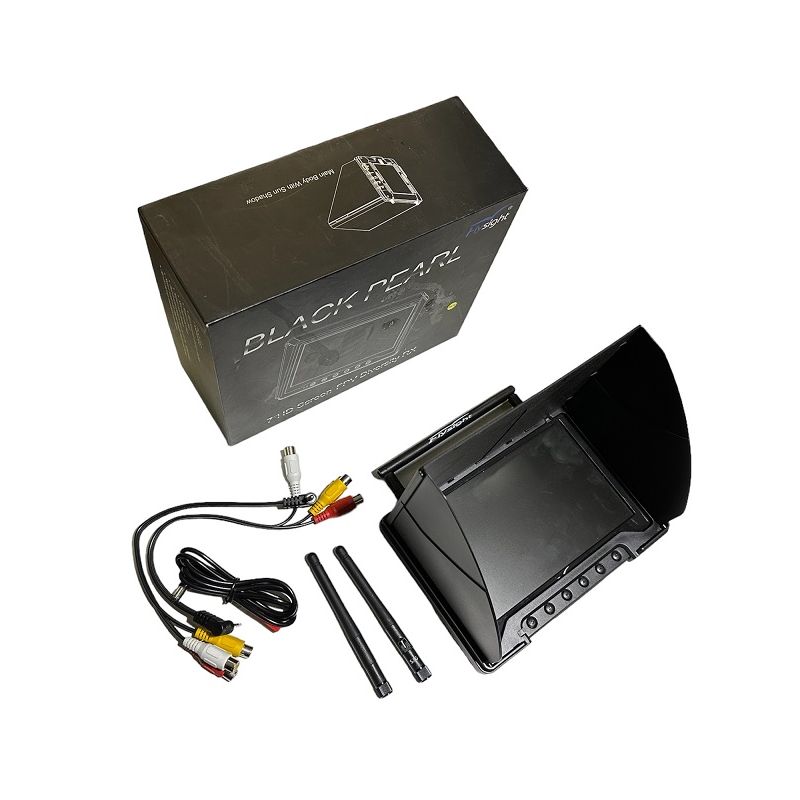

Kit Contains:

  • 1 x 7" Flysight FPV / First Person View Monitor
  • 2 x Antenna (3dBi)
  • 1 x Battery (1000 mAh Lipo)
  • 1 x Sun Shield (Removable three part plastic)
  • 1 x AV Cable to 3.5mm Jack
