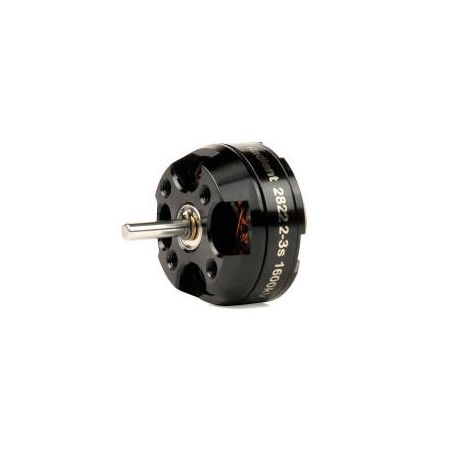

Radient Brushless Motor 2822 1600KV (2-3S)

Radient Brushless Motor 2822 1600KV (2-3S) RDNM28221600

A high-quality, beautifully engineered, smooth and powerful brushless outrunner motor designed and manufactured specifically for model aircraft

Key Features

• 14 Pole 12 slot hi-torque rotor.
• CNC-machined 6061-T6 billet heatsink can.
• High purity, maximum efficiency copper windings.
• High RPM ABEC5 oversized bearings.
• Precision balanced rotor offers smooth, reliable performance.
• Super-thin (0.2mm) stator laminations.
• Precision engineered for maximum energy conversion.

What's in the Box
1x Radient high-torque brushless motor.
1x Shaft prop drive.
1x Can prop drive.
1x X-type mounting bracket.
4x Short countersunk screws for g the bracket to the motor.
4x Long cap head screws for can prop drive installation.attachin

Product Description
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

Specification:

• Watts (W): 180
• Rec'd ESC (A): 20
• Rec'd LiPo (cells): 2-3S
• Shaft Dia. (mm): 3.0
• Bullet Connector (mm): 3.5
• Weight (g): 30
• Prop Size / 2S (in): 8x4 / 9x6
• Prop Size / 3S (in): 7x4 / 8x4

Click here for the manual
