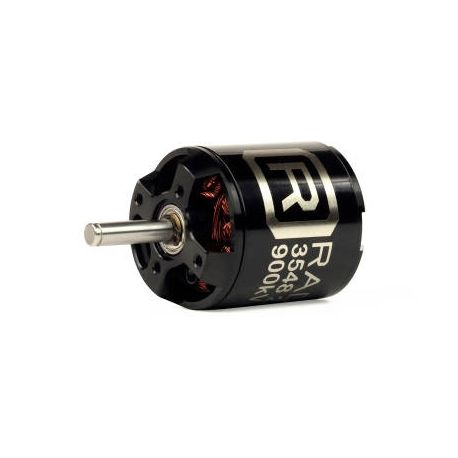

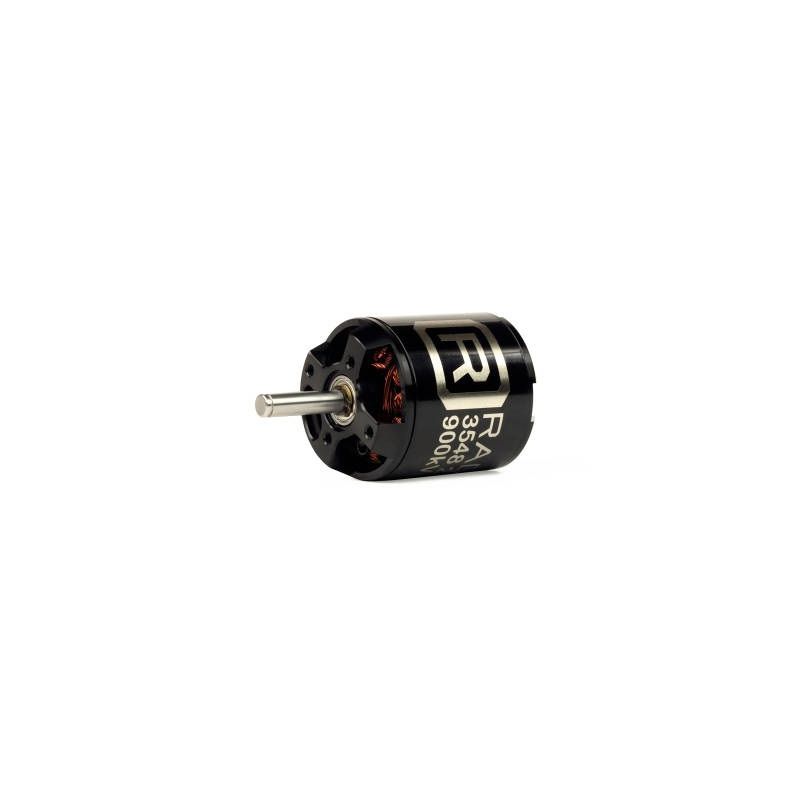

Radient Brushless Motor 3548 900KV (2-4S)

Radient Brushless Outrunner Motor 3548 900KV (2-4S) RDNM3548900

Equivalent of a .46 IC Glow Engine (General Flying)

Key Features

• 14 Pole 12 slot hi-torque rotor.
• CNC-machined 6061-T6 billet heatsink can.
• High purity, maximum efficiency copper windings.
• High RPM ABEC5 oversized bearings.
• Precision balanced rotor offers smooth, reliable performance.
• Super-thin (0.2mm) stator laminations.
• Precision engineered for maximum energy conversion.

What's in the Box

1x Radient high-torque brushless motor.
1x Shaft prop drive.
1x Can prop drive.
1x X-type mounting bracket.
4x Short countersunk screws for attaching the bracket to the motor.
4x Long cap head screws for can prop drive installation.

Product Description

Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

Specification:

• Watts (W): 1000
• Rec'd ESC (A): 80
• Rec'd LiPo (cells): 2-4S
• Shaft Dia. (mm): 5.0
• Bullet Connector (mm): 3.5
• Weight (g): 172
• Prop Size / 3S (in): 10x7 / 12x7
• Prop Size / 4S (in): 9x6 / 10x7

click here for the manual
