FrSky Telemetry Sensor Hub FSH-01

FSH-01

New

in-stock

€ 16.77

-10%

€ 18.63

Add to wishlist

More info

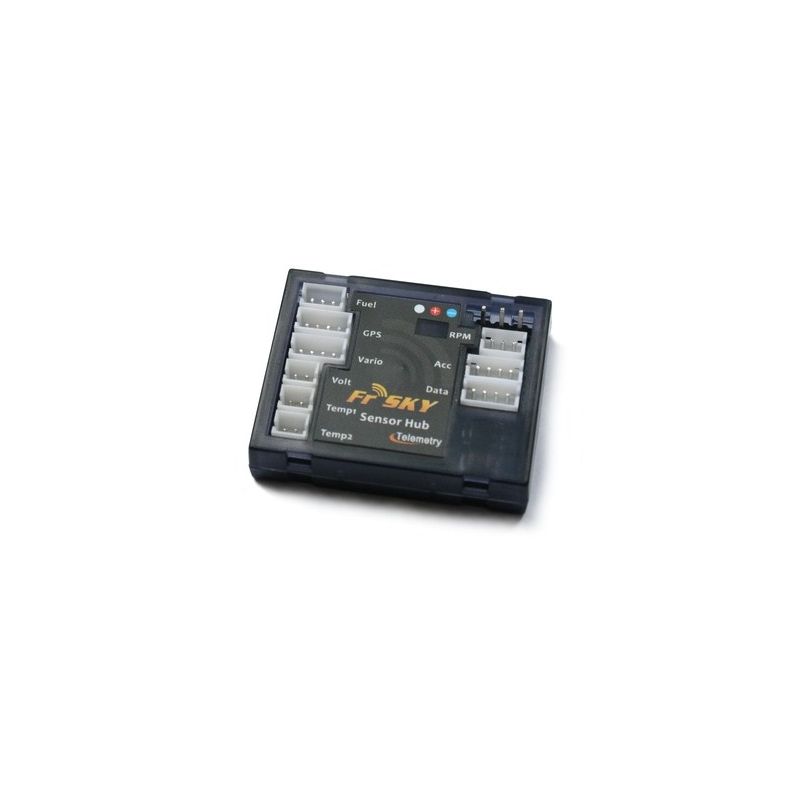

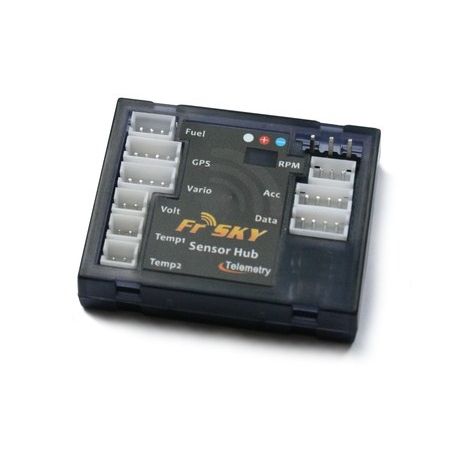

FrSky Telemetry Sensor Hub FSH-01

FrSky Sensor Hub is recommended to connect digital side port (G, TX, RX) of FrSky telemetry receiver and FrSky sensors by the provided cable, to serve as an information collecting and processing center, monitor the model status and feedback all data back to FrSky DHT-U.

  • Dimension: 37X30X8mm
  • Weight: 7g (sensor hub only w/o wires)
  • Operating Voltage Range: 4~10V
  • Operating Temperature Range: -20~80C
  • Feature: Firmware upgradable

Definition:

  • Fuel: Fuel Gauge Sensor
  • GPS: GPS
  • Vario: Variometer Sensor
  • Volt: Lipo Voltage Sensor
  • Temp1/2: Temperature Sensor
  • Power: Power Supply
  • RPM: RPM Sensor
  • Acc: Triaxial Acceleration Sensor
  • Data: use provided cable to connect to digital side port (G, TX, RX) of FrSky telemetry receiver

Installation:

It is recommended to take the length of all sensors’ wires into consideration before mounting, and use double-sided tape to install FrSky sensor hub at an appropriate place in the model.
