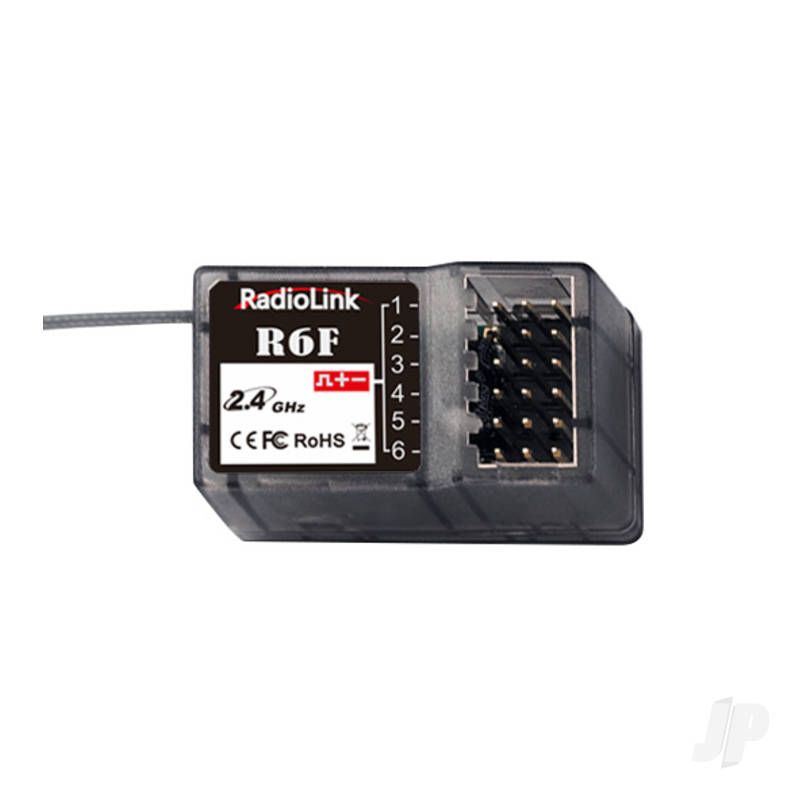

RadioLink R6F 6-Channel Surface Receiver RLKR061000

Radiolink R6F, 2.4GHz 6 channels receiver, HV servo supported. Compatible with Radiolink 6 channels pistol grip radio RC6GS, 4 channels pistol grip radio RC4GS, RC4G, RC3S and 8 channels transmitter T8FB.


  1. Put the transmitter and the receiver close to each other within 50 centimeters.
  2. Turn on the transmitter, then power on the R6F.
  3. There is a black button on the R6F, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

Installment of receiver antenna

  1. The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.
  2. Large model aircraft may of some metal part interfering signal; in this case the antennas should be placed at both sides of the model. Then the best RF signal condition is obtained at any attitude.
  3. The antennas must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius.
  4. Keep the antennas away from the motor, ESC, and other noise sources as much as possible.
  5. The receiver can be packed by sponge or foam for shocking proof when it is installed to the model.
  6. After all of the above steps finished, now the program functions to assure it under control of transmitter with a right connection.

Technical Parameters

  • Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
  • Size: 35*20*13mm
  • Weight: 6g
  • Channel: 6 channels
  • Model: cars/boats
  • Modulation mode: GFSK
  • Spread spectrum: FHSS
  • 10 modes memory storage
  • Antenna length: 200mm
  • Control distance: more than 400 meters
  • LCD screen: 128*64 resolution, LCD back light
  • Power supply: 4.8~10.0V DC
  • RF power: <10dbm
  • Channel resolution: 4096
  • Work current: 30mA
  • Compatible transmitters: RC6GS, RC4GS, RC4G, T8FB,T8S, RC3S(Stop Production)
