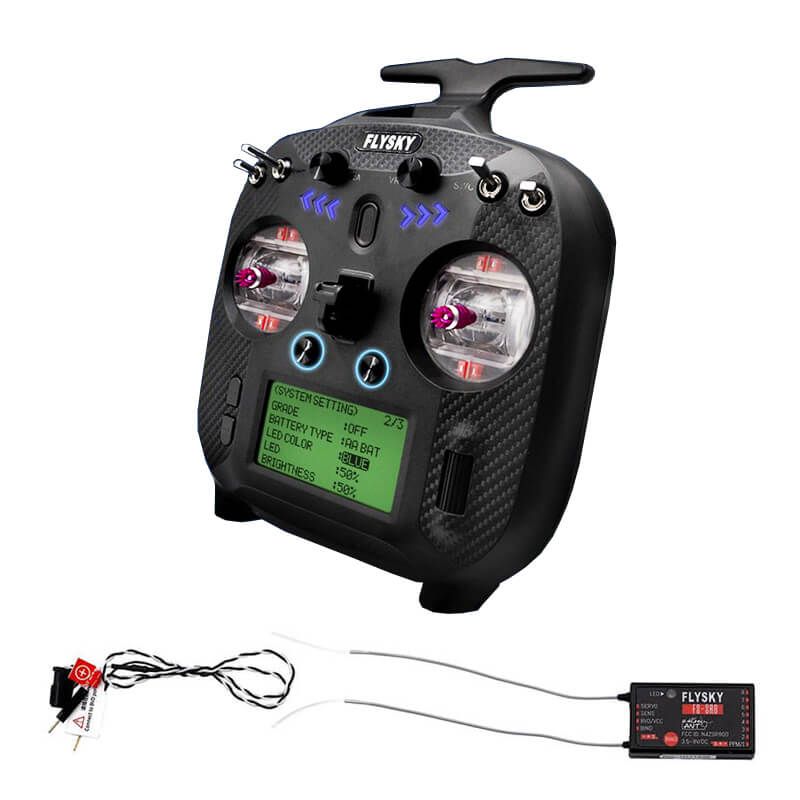

FlySky FS-ST8 2.4GHZ Radio With SR8 Receiver

Flysky FS-ST8 8CH 2.4GHZ Radio System With 8CH SR8 Receiver FS-ST8+SR8-8CH

Features

• Digital proportional radio control system.
• The RX SET (receiver setting) menu provides a number of the function setting menus to allow you to set up the receiver system in all aspects.
• Designed for ease of use with intuitive controls.
• Lightweight and compact making it easy to carry and use.
• The ergonomic shape ensures a comfortable grip and reduces hand fatigue, even during extended use.

• Also available as a 12 Channel upgrade version with extra buttons and shoulder wheels.
• Handset Specifications
• Product Model: FS-ST8
• Number of Channels: 8-12
• Compatible Receiver: FS-SR8 (Adapts receiver with ANT protocol)
• Compatible RC Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, robots, cars or boats
• Wireless Frequency: 2.4GHz ISM
• Maximum Power: <20dBm (E.I.R.P)(EU)
• RF Protocol: ANT
• Distance: More than 1000m (Air distance without interference)
• Resolution: 4096
• Input Power: 1.5AA*4 or 2S Lipo (JST)

• Charging Jack: None
• Data Connector: USB Type-C, 3.5mm audio jack
• Low Voltage Warning: AA battery <4.2V, Lipo Battery <7.2V
• Antenna: Built-in double antennas
• Display: 128*64 LCD (dot matrix screen)
• Temperature Range: -10C ~ +60C
• Humidity Range: 20% ~ 95%
• Firmware Update: Supported
• Colour: Black
• Dimensions: 176 x 210.9 x 82.5mm
• Weight: 420g
• Certifications: CE, FCC ID: : N4ZST800

Receiver Specifications

• Product Model: FS-SR8
• Compatible Transmitters: FS-ST8 (Adapts transmitter with ANT protocol)
• Compatible RC Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, racing drones, cars or boats
• Number of PWM Channels: 8
• Wireless Frequency: 2.4GHz ISM
• RF Protocol: ANT
• Resolution: 4096
• Distance: More than 1000m (Air distance without interference)
• Antenna: Two antennas
• Operating Voltage: 3.5~9V DC
• Data Output: PWM/PPM/i-BUS/S.BUS
• Firmware Update: Supported
• Temperature Range: -10C ~ +60C
• Humidity Range: 20% ~ 95%
• Weight: 10g
• Dimensions: 44.8 x 26.6 x 11.3mm
• Certifications: CE, FCC ID: 2A2UNSR800

What's Included
1 x ST8 Transmitter
1 x SR8 Receiver
