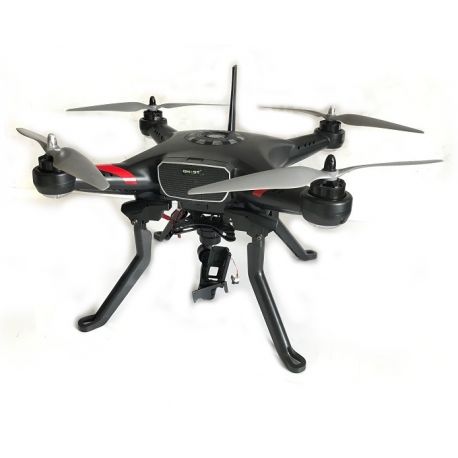

Thunder Tiger Ghost Quad Drone Only Used

Thunder Tiger Ghost Quad Drone Only Used TTG4

Condition: very good

Test Flown

Requires a Radio, 6s lipo battery and a lipo charger

The Ghost is the Thunder Tiger’s more compact multi-rotor aircraft. The Drone was launched into the market in early 2015. The Ghost comes equipped with an enlarged frame design and retractable landing gear. The unique intelligent power display system shows the battery life and features an anti-spark design. The large high-intensity directional LED lights are mounted under each motor to help with flight orientation. The Ghost’s design is compatible with multiple camera gimbal systems and is also able to accept standard Li-po batteries in addition to the proprietary TTRobotix Li-po battery. The RTF Ghost version package comes equipped with a GPS, WIFI, Hero Flight Controller, 6S 6000mAh battery, Commander Radio and 3D gimbal (GoPro compatible).

FEATURES (Thunder Tiger Ghost):

• Enlarged frame space provides abundant assembly space for electron systems and easier to install various auxiliary equipment required for aerial photography;
• Intelligent power display system on the surface provides battery capacity check and anti-spark design;
• Can use either proprietary battery or use standard Li-po batteries;
• Build-in “Follow Me” function let the Pilot Drone can Follow him/her to everywhere;
• Retractable Landing Skids provide better view of the camera lens (360 Degrees);
• High performance 3-Axis gimbal suitable for Gopro models (standard pack);
• High performance handycam carrier for the Sony PJ series (Optional).

SPECIFICATIONS (Thunder Tiger Ghost):

• Diagonal distance: 450 millimeters;
• Frame weight (motor, esc, props): 1.45 Kg;
• Motor stator size: 28.0 x 14.0 mm;
• Motor KV: 450 rpm/V;
• ESC current: 30 A; ESC voltage: 6S Li-po;
• Propeller size: 11” (27.9 cm);
• Battery compartment capacity: 6S Li-po (2 x 4000mAh);
• Takeoff weight: 2.15Kg (using 6S/6000mAh proprietary battery);
• Max hover time: about 25 minutes (6S/6000mAh)
