5A High Power Adjustable Step Up Volt Reg

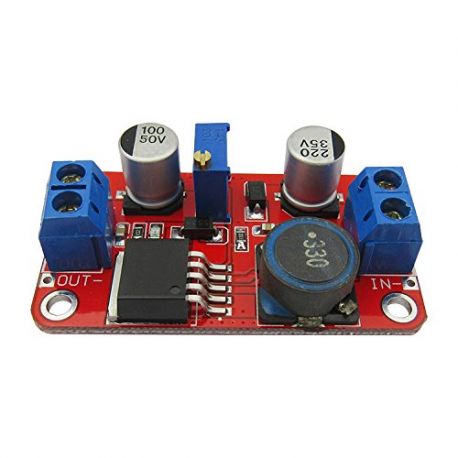

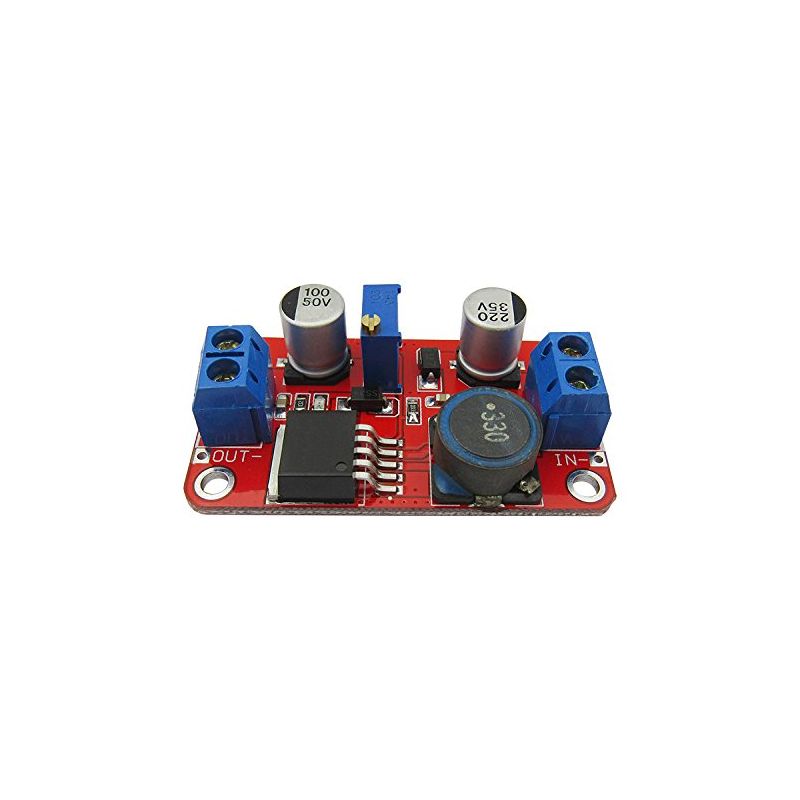

5A High Power Adjustable Step Up Voltage Regulator XL6019DC

Specifications:

1.Module feature:XL6019 step up module
2.Module type:Non-isolated boost
3.Rectification method:Non-synchonous rectfication
4.Input voltage:3V-35V
5.Output voltage:5V-40V(notes can not step down voltage)
6.Input current:3A(maximum 5A)
7.Transfer efficiency:94%(The highest)Normal efficiency for 85%
8.Switching frequency:220KHz
9.Output ripple:<100mV
10.Load regulation:+-0.5%
11.Voltage regulation:+-0.5%
12.Operating temperature:-20°~+85°
13.Size:5cmx2.8cmx1.2cm(2.28"x1.10"x0.47")
