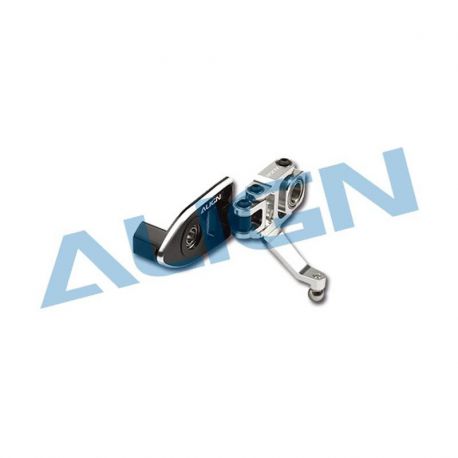

Trex 500 Metal Tail Pitch Assembly H50189

Align Trex 500 Metal Tail Pitch Assembly H50189

Instruction:

• Use for T-REX 500PRO/EFL PRO.
• Utilizes dual point attachment design for zero play and higher precision control feel.
• Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
• 6061-T6 Aluminum alloy material and CNC processed.

Specification:

• I-shaped Arm × 1
• Mount Link × 1
• Metal plate(R) × 1
• Bearing 684ZZ × 1(Φ4xΦ9x4mm)
• Bearing holder × 1(11.5x9x12.5mm )
• Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm)
• Bearing mount washer × 1(Φ6x Φ7.4x3mm)
• Bearing FMR52ZZ × 6(Φ2xΦ5xΦ6x2.3mm)
• Bearing MR106ZZ × 2(Φ6xΦ10x3mm)
• Socket button head screw × 6(M2x4mm)
