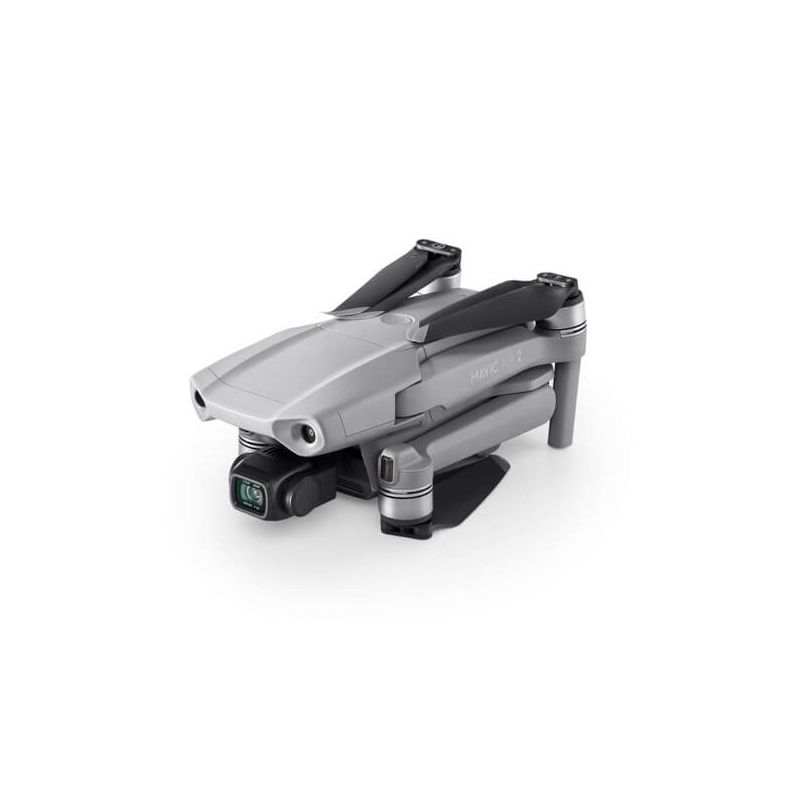

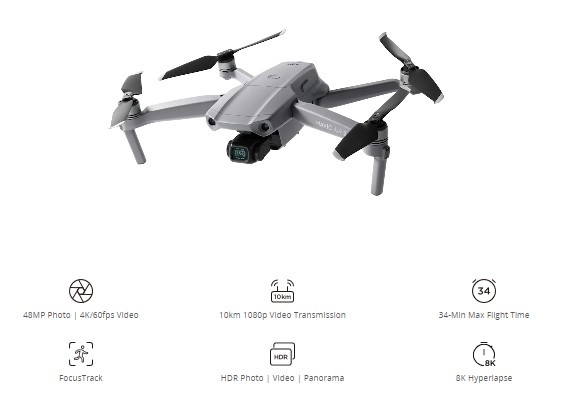

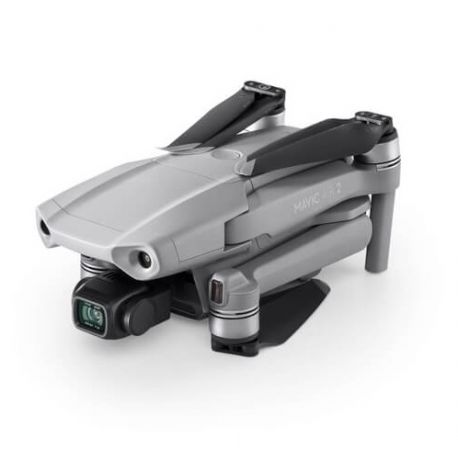

DJI Mavic Air 2 Fly More Combo

DJI Mavic Air 2 Fly More Combo

click here for replacement parts

click here for a spare battery

In the box

Specs

Aircraft:

•     Weight:  570 g

Size  Folded:

• 180×97×84 mm (Length×Width×Height)

Unfolded:

• 183×253×77 mm (Length×Width×Height)

Diagonal Distance:  302 mm

•  Max Ascent Speed:
•  4 m/s (S Mode)
•  4 m/s (N Mode)

Max Descent Speed:

• 3 m/s (S Mode)
• 3 m/s (N Mode)
• 5 m/s (S Mode during a sharp descent)
• 3 m/s (all modes at elevations over 4500 m)

Max Service Ceiling Above Sea Level: 5000 m

• Max Flight Time (without wind): 34 minutes
• Max Hover Time (without wind): 33 minutes
• Max Flight Distance: 18.5 km

    Max Horizontal Flight Speed:

• 19 m/s (S Mode)
• 12 m/s (N Mode)
• 5 m/s (T Mode)

Max Wind Resistance:

• 8.5-10.5 m/s (Level 5)

Max Tilt Angle:

• 35° (S Mode)
• 20° (N Mode)
• 35° (N Mode under strong wind)

Max Angular Velocity
    250°/s (S Mode)
    250°/s (N Mode)

Operating Temperature Range
    -10° to 40°C (14° to 104°F)

Operating Frequency
    2.400-2.4835 GHz
    5.725-5.850 GHz

Transmitter Power (EIRP)

•     2.400-2.4835 GHz:
•     FCC: ≤26 dBm
•     CE: ≤20 dBm
•     SRRC: ≤20 dBm
•     MIC: ≤20 dBm

5.725-5.850 GHz:

•     FCC: ≤26 dBm
•     CE: ≤14 dBm
•     SRRC: ≤26 dBm

Hovering Accuracy Range

Vertical:

•     ±0.1 m (with vision positioning)
•     ±0.5 m (with GPS positioning)

Horizontal:

•     ±0.1 m (with vision positioning)
•     ±1.5 m (with GPS positioning)

Propellers

•     Quick release, low noise, folding

Satellite Systems

•     GPS+GLONASS

Compass

•     Single Compass

IMU

•     Single IMU

Internal Storage

•     8 GB

Battery:

•     Capacity 3500 mAh
•     Voltage 11.55 V
•     Charging Voltage Limit 13.2 V
•     Battery Type LiPo 3S
•     Energy 40.42 Wh
•     Weight 198 g
•     Charging Temperature 5° to 40°C (41° to 104°F)
•     Max Charging Power 38 W

Camera:

Sensor

•     1/2" CMOS
•     Effective Pixels: 12 MP and 48 MP

   Lens

•     FOV: 84°
•     Equivalent Focal Length: 24 mm
•     Aperture: f/2.8
•     Focus Range: 1 m to ∞

ISO

Video:

•     100-6400

Photo (12 MP):

•     100-3200 (Auto)
•     100-6400 (Manual)
•     Photo (48 MP):
•     100-1600 (Auto)
•     100-3200 (Manual)

Max Photo Resolution

•     48 MP 8000×6000 pixel

Photo Modes

•     Single: 12 MP and 48 MP
•     Burst: 12 MP, 3/5/7 frames
•     Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
•     Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
•     SmartPhoto: Scene Recognition, HyperLight, and HDR
•     HDR Panorama:
•     Vertical (3×1): 3328×8000 pixels (Width×Height)
•     Wide (3×3): 8000×6144 pixels (Width×Height)
•     180° Panorama (3×7): 8192×3500 pixels (Width×Height)
•     Sphere (3×8+1): 8192×4096 pixels (Width×Height)

    Photo Formats

•     JPEG/DNG (RAW)

    Video Resolution and Frame Rates

•     4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
•     2.7K: 2688×1512 24/25/30/48/50/60 fps
•     FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
•     4K Ultra HD HDR: 3840×2160 24/25/30 fps
•     2.7K HDR: 2688×1512 24/25/30 fps
•     FHD HDR: 1920×1080 24/25/30 fps

Color Profiles

•     D-Cinelike, Normal

   Video Formats

•     MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

Max Bitrate

•     120 Mbps

Supported SD Cards

•     Supports a microSD with capacity of up to 256 GB

Supported File Systems

•     FAT32 and exFAT

 Zoom

•     Not available

Gimbal:

•     Stabilization
•     3-axis (tilt, roll, pan)

Mechanical Range

•     Tilt: -135° to 45°
•     Roll: -45° to 45°
•     Pan: -100° to 100°

Controllable Range

•     Tilt: -90° to 0° (Default)
•     -90° to 24° (Extended)

Max Controllable Speed (tilt)
    100°/s

Angular Vibration Range

•     ±0.01°

Vision System:

Forward

•     Precision Measurement Range: 0.35-22.0 m
•     Detection Range: 0.35 to 44 m
•     Effective Sensing Speed: 12 m/s
•     Field of View (FOV):
•     71° (horizontal), 56° (vertical)

Backward

•     Precision Measurement Range: 0.37-23.6 m
•     Detection Range: 0.37-47.2 m
•     Effective Sensing Speed: 12 m/s
•     Field of View (FOV):
•     44° (horizontal), 57° (vertical)

Available Downward Sensors
    Dual Vision Sensors + Time of Flight Sensors (ToF)

Downward

•     ToF Measurement Range: 0.1-8 m
•     Hovering Range: 0.5-30 m
•     Vision Sensor Hovering Range: 0.5-60 m

Left/Right
    None

Downward Auxillary Light
    Single LED

Safety:

•     Obstacle Avoidance System
•     Advanced Pilot Assistance Systems (APAS) 3.0

Video Transmission:

Transmission System
    OcuSync 2.0
    2.4 GHz/5.8 GHz Auto-Switching

Max Transmission Distance
    10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Live View Quality
    720p@30fps/1080@p30fps

Latency (depending on environmental conditions and mobile device)
    120-130 ms

Video Transmission Encoding format
    H.265/H.264 (Auto-switches depending on encoding capabilities of device)

Max Transmission Bitrate
    40 Mbps

Operating Frequency
    2.400-2.4835 GHz
    5.725-5.850 GHz

Remote Controller:

Remote Controller Transmission System
    OcuSync 2.0

    Supported Mobile Device Connectors
    Lightning, Micro USB, USB Type-C

Max. Supported Mobile Device Size
    180×86×10 mm (Height×Width×Thickness)

   Operating Temperature
    -10° to 40°C (14° to 104°F)

Transmitter Power (EIRP)
    2.400-2.4835 GHz:
    FCC: ≤26 dBm
    CE: ≤20 dBm
    SRRC: ≤20 dBm
    MIC: ≤20 dBm

5.725-5.850 GHz:
    FCC: ≤26 dBm
    CE: ≤14 dBm
    SRRC: ≤26 dBm

Operating Current/Voltage
    1200 [email protected] (Android)
    700 mA@ 3.7 V (iOS)

Charger:

Charging Input
    100-240 V, 50/60 Hz, 1.3 A

Charging Output
    Charging Port: 13.2 V⎓2.82 A
    USB Port: 5 V⎓2 A

Voltage
    13.2 V

Rated Power
    38 W

SD Cards:

•     Supported SD Cards
•     Micro SD™
•     Supports a microSD card with a capacity of up to 256 GB.
•     A UHS-I Speed Grade 3 rating microSD card is required.

Recommended microSD Cards

•     SanDisk Extreme PRO 64GB V30 A2 microSDXC
•     SanDisk High Endurance 64GB V30 microSDXC
•     SanDisk Extreme 64GB V30 A2 microSDXC
•     SanDisk Extreme 128GB V30 A2 microSDXC
•     SanDisk Extreme 256GB V30 A2 microSDXC
•     Lexar 667x 64GB V30 A2 microSDXC
•     Lexar High-Endurance 64GB V30 microSDXC
•     Samsung EVO Plus (Yellow) 64GB microSDXC
•     Samsung EVO Plus (Red) 64GB microSDXC
•     Samsung EVO Plus 128GB microSDXC
•     Samsung EVO Plus 256GB microSDXC
•     Kingston V30 128GB microSDXC
•     Netac 256GB A1 microSDXC
