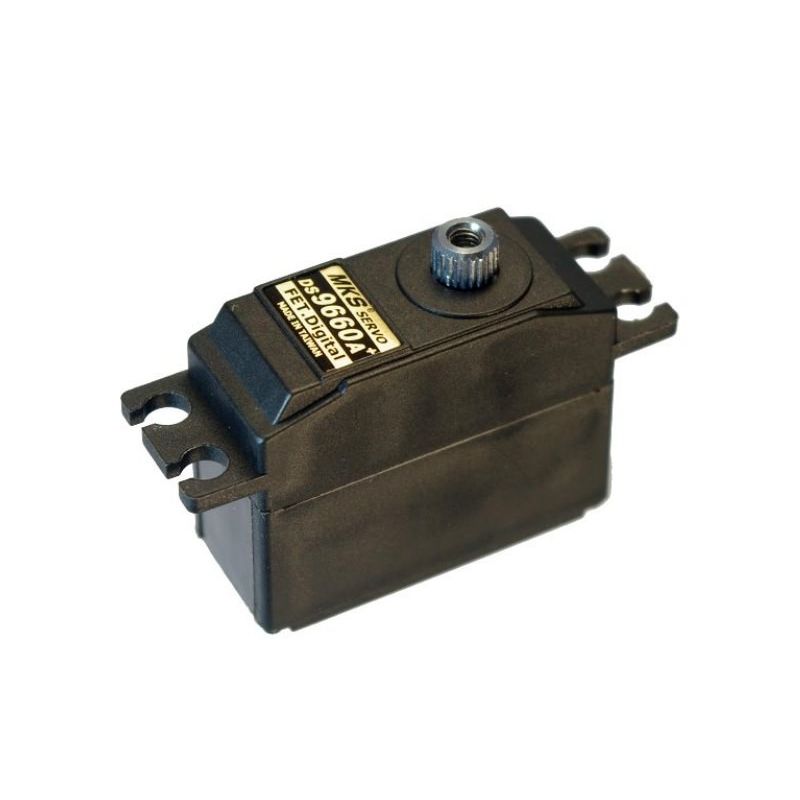

DS9660A+ MKS Mini 0.09s/4.7KG USED

DS9660A+-U

Used

in-stock

Warning: LOW STOCK !

€ 27.00

Add to wishlist

More info

USED DS9660A+ MKS Mini 0.09s/4.7KG DS9660A+-U

  • Titanium + aluminum-alloy gears design
  • Dual Ball Bearings - precise technology

Specification:

  • Dead Band: 0.0008ms (Default)
  • Control System: +Pulse Width Control
  • Working frequence: 1520μs / 333hz
  • (RX) Required Pulse: 3.0 ~6.0 Volt Peak to Peak Square Wave
  • Operating Voltage: 4.8 ~6.0 V DC Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed (4.8V): 0.12 sec/60° degrees at no load
  • Operating Speed (6.0V): 0.09 sec/60° degrees at no load
  • Stall Torque (4.8V): 3.8 kg.cm (52.8 oz/in)
  • Stall Torque (6.0V): 4.7 kg.cm (65.3 oz/in)
  • 360° Modifiable: NO
  • Motor Type: Coreless Motor
  • Potentiometer Drive: Indirect Drive
  • Driver Type: FET
  • Bearing Type: Dual Ball Bearings
  • Gear Type: 1 Titanium Gear + 4 aluminum-alloy Gears
  • Programmable: NO

Includes:

  • MKS DS9660A+ Servo ID#S00080A1
  • Servo Horn Package, x1
  • Weight: 28g (0.99oz)
  • Dimensions: 35.8X15.2X29 mm (1.41x 0.6x 1.14 in)
  • Connector Wire Length: 24.0cm (9.4in)

Mini Servo            (4.8v) sec/60°     (6.0v) sec/60°     (4.8v) kg/cm     (6.0v) kg/cm
MKS DS9660A+     0.12                    0.098                  3.8                   4.7
Savox 1250MG       0.13                    0.11                   3.7                   4.6
Futaba S9650         0.14                    0.11                   3.6                   4.5
JR DS3517MG        0.11                    0.09                   3.0                   3.65
